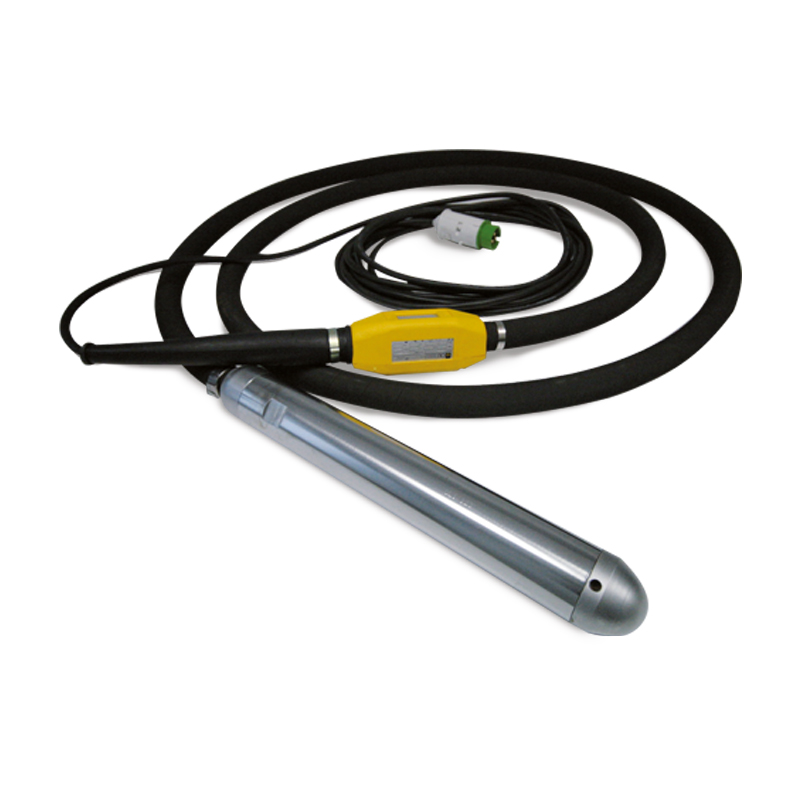

VH -Electric Poker

The range of electric concrete vibrators of VH is designed to work in direct contact with concrete to optimize compaction, for this reason they are also called immersion vibrators.
VH concrete pokers are capable of developing high centrifugal forces at a constant speed; the high wear resistance makes them suitable for all types of concrete processing, even in continuous operation in harsh conditions.

Contact us!Download

Share:
  • Technical Features
  • Sectors & Applications

functions

Applications

The high frequency immersion vibrators of the VH series allow the rapid removal of air bubbles trapped in fresh concrete without any segregation of the elements that make up the mass. The result is a homogeneous final product, durable and mechanically resistant, without cracks or cavities. The wide range available meets all needs in both the private and civil engineering sectors.

features

Features

The high centrifugal force of the VH pokers is generated by a high frequency electric motor integrated in the vibrating needle. The control switch is protected by a reinforced gasket resistant to continuous use and is inserted in a polyamide housing with IP 66 protection.
The standard VH range has a 10 meter long electric cable and a flexible, internally reinforced control tube, 5 meters long.
For safety reasons, the VH vibrator range operates in very low voltage (42V), for this reason they must be connected to CM series electromechanical or EC series electronic converters.

On the whole VH range:
Nominal frequency: 12,000 vib / min
Ambient temperature: -20 ~ 40 ° C
Thermal protection
Exclusive sealing system
Vibrating needle tip protection class: IP 68

VHN range:
Vibrating needle diameter: 38 ~ 50 ~ 59 mm
Vibration amplitude: 1.8 ~ 2.3mm
Centrifugal force: 1,700 N ~ 4,560 N
Vibrating needle with surface hardening treatment

VHP range:
Vibrating needle diameter: 50 ~ 59 ~ 65 mm
Vibration amplitude: 2.1 ~ 2.6mm
Centrifugal force: 3.760 N ~ 7.330 N
Vibrating chromed needle

benefits

Advantages

  • It does not overheat
  • Durable tip
  • Perfect water tightness
  • Facilitated maintenance
  • Particularly reliable

Certifications

Certifications

  • CE: Community Directives and subsequent amendments: 2006/42 / CE, 2004/108 / CE, 2006/95 / CE
  • Conformity verified according to standard documents: CEI EN 60745-1, CEI EN 60745-2-12, UNI EN ISO12100

options

Options

  • Rubber toe

Sectors & Applications

Sectors

  • Building & Construction

Applications

  • Concrete Compaction
  • Technical Features

    functions

    Applications

    The high frequency immersion vibrators of the VH series allow the rapid removal of air bubbles trapped in fresh concrete without any segregation of the elements that make up the mass. The result is a homogeneous final product, durable and mechanically resistant, without cracks or cavities. The wide range available meets all needs in both the private and civil engineering sectors.

    features

    Features

    The high centrifugal force of the VH pokers is generated by a high frequency electric motor integrated in the vibrating needle. The control switch is protected by a reinforced gasket resistant to continuous use and is inserted in a polyamide housing with IP 66 protection.
    The standard VH range has a 10 meter long electric cable and a flexible, internally reinforced control tube, 5 meters long.
    For safety reasons, the VH vibrator range operates in very low voltage (42V), for this reason they must be connected to CM series electromechanical or EC series electronic converters.

    On the whole VH range:
    Nominal frequency: 12,000 vib / min
    Ambient temperature: -20 ~ 40 ° C
    Thermal protection
    Exclusive sealing system
    Vibrating needle tip protection class: IP 68

    VHN range:
    Vibrating needle diameter: 38 ~ 50 ~ 59 mm
    Vibration amplitude: 1.8 ~ 2.3mm
    Centrifugal force: 1,700 N ~ 4,560 N
    Vibrating needle with surface hardening treatment

    VHP range:
    Vibrating needle diameter: 50 ~ 59 ~ 65 mm
    Vibration amplitude: 2.1 ~ 2.6mm
    Centrifugal force: 3.760 N ~ 7.330 N
    Vibrating chromed needle

    benefits

    Advantages

    • It does not overheat
    • Durable tip
    • Perfect water tightness
    • Facilitated maintenance
    • Particularly reliable

    Certifications

    Certifications

    • CE: Community Directives and subsequent amendments: 2006/42 / CE, 2004/108 / CE, 2006/95 / CE
    • Conformity verified according to standard documents: CEI EN 60745-1, CEI EN 60745-2-12, UNI EN ISO12100

    options

    Options

    • Rubber toe
  • Sectors & Applications

    Sectors

    • Building & Construction

    Applications

    • Concrete Compaction
