S – Rotary Pneumatic Vibrators – Ball Flow Aids
Click to enlarge

S - Pneumatic rotational vibrator - Ball

The OLI "S" series pneumatic rotational vibrators generate high frequency vibration thanks to a steel ball that rotates inside two housings made of hardened and ground steel.

Contact us!Download

Share:
  • Technical Features
  • Sectors & Applications

functions

Applications

They are particularly efficient when used with fine powders and small-sized, non-wet granular materials.

features

Features

The S series requires lubricated air at a working pressure from 2 to 6 bar (29 ~ 87 PSI).
At maximum speed, the noise does not exceed 90 dB (A).
They are designed to be used in outdoor applications, for this reason the body is made of blue anodized aluminum while covers are in Ixef®, a particular plastic material with high resistance to atmospheric agents and harsh working conditions.

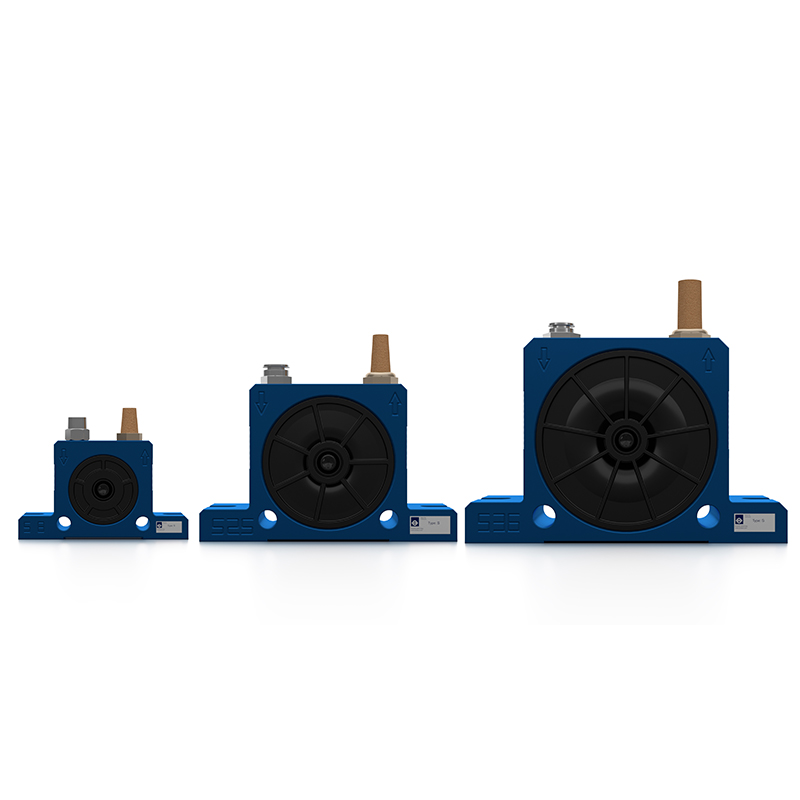

The S series is composed of eight different sizes of vibrators.

benefits

Advantages

  • Easy to install
  • Low air consumption
  • Excellent quality/price ratio
Certifications

Certifications

The S series pneumatic vibrators are designed and built according to the following standards UNI EN 13463-1 – EN 13463-5 – ISO 14121 – UNI EN 1127-1 and comply with the 2014/34 / UE directives.
They are certified ATEX II 2D c Tx – II 2G c Tx to be used in potentially explosive environments.



Sectors & Applications

Applications

  • Automatic Block Machine
  • Big bag compaction
  • Pipe Conveyor
  • Silos and Hopper Emptying
  • Soil Reclaiming Screen
  • Truck
  • Vibrating Big-Bag Filling
  • Vibrating Chute
  • Vibrating Cleaning Filter
  • Vibrating Compactor for Bagging Machine
  • Vibrating Empty Big-Bag
  • Vibrating Testing Table

Sectors

  • Building & Construction
  • Energies
  • Environmental Technologies
  • Feed & Food
  • Heavy Industries
  • Plants & Machinery
  • Plastics & Chemicals
